Office Luminiares
Wave

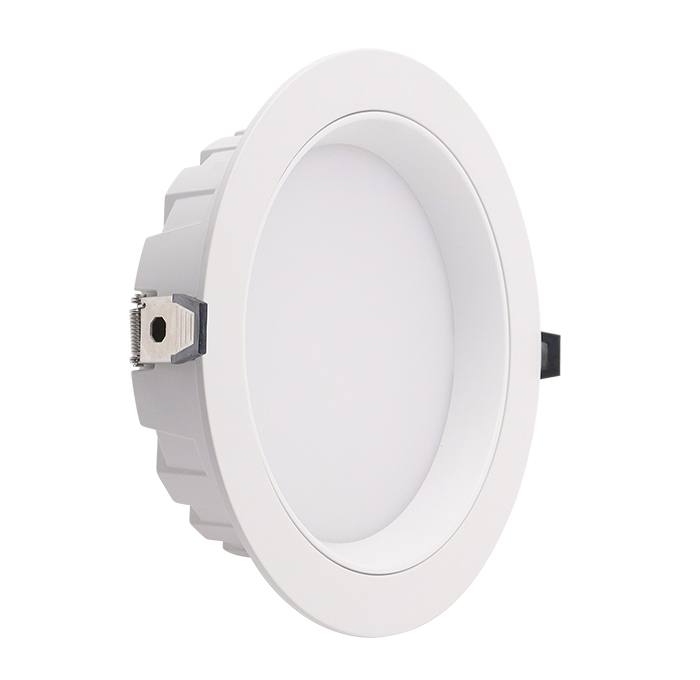

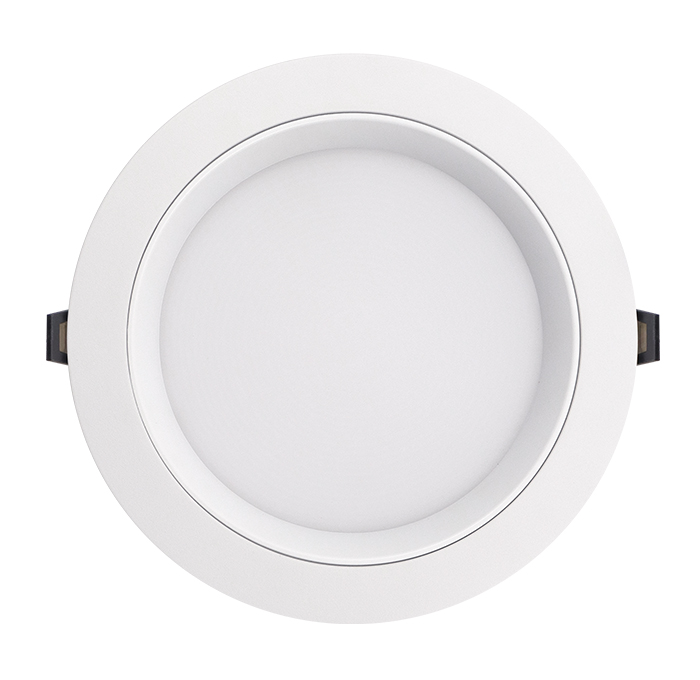

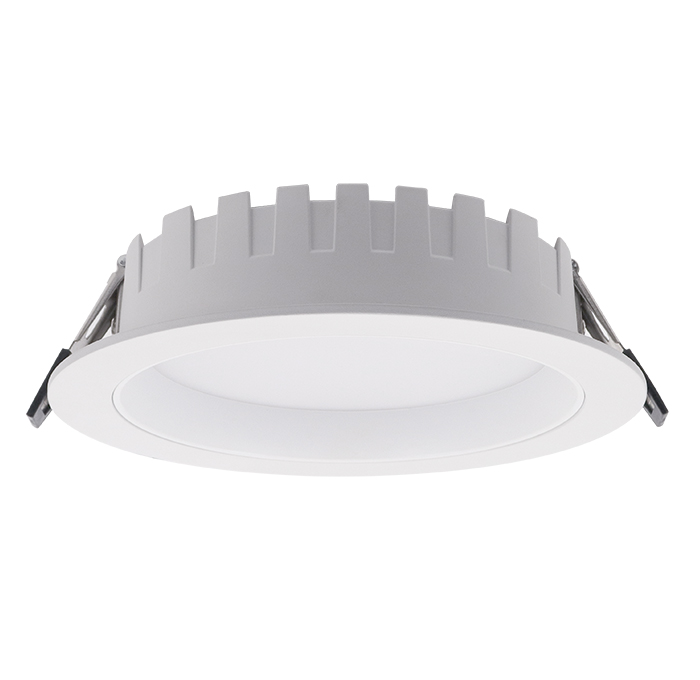

This premium solid aluminum downlight features an isolated driver and is backed by a 5-year warranty for reliable performance. It offers versatile control via DALI, 0-10V, CCT switching, and power switching compatibility. Designed for tool-free installation with integrated connection box, it maintains an ultra-slim ≤30mm profile when installed – delivering a discreet, high-end lighting solution.

Choose variant:
Color

  • white

    • Colour temperature
    • 2700K
    • 3000K
    • 4000K
    • 5000K

    This premium solid aluminum downlight features an isolated driver and is backed by a 5-year warranty for reliable performance. It offers versatile control via DALI, 0-10V, CCT switching, and power switching compatibility. Designed for tool-free installation with integrated connection box, it maintains an ultra-slim ≤30mm profile when installed – delivering a discreet, high-end lighting solution.

    Technical parameters

    Colour Material Watt Ra CCT LM LM/W Dimming Lamp Size
    White AL 8W >80 2700K-5000K 760LM 95LM/W DALI,Bluetooth,WiFi 150*H45Cut out 120mm
    White AL 10W >80 2700K-5000K 950LM 95LM/W DALI,Bluetooth,WiFi 150*H45Cut out 120mm
    White AL 12W >80 2700K-5000K 1140LM 95LM/W DALI,Bluetooth,WiFi 150*H45Cut out 120mm
    White AL 16W >80 2700K-5000K 1540LM 94LM/W DALI,Bluetooth,WiFi 197*H50Cut out 120mm
    White AL 20W >80 2700K-5000K 1860±10％LM 93LM/W DALI,Bluetooth,WiFi 197*H50Cut out 120mm
    White AL 24W >80 2700K-5000K 2232±10％LM 93LM/W DALI,Bluetooth,WiFi 197*H50Cut out 120mm
    White AL 28W >80 2700K-5000K 2576±10％LM 92LM/W DALI,Bluetooth,WiFi 230*H55Cut out 120mm
    White AL 32W >80 2700K-5000K 2944±10％LM 92LM/W DALI,Bluetooth,WiFi 230*H55Cut out 120mm
    White AL 36W >80 2700K-5000K 3312±10％LM 92LM/W DALI,Bluetooth,WiFi 230*H55Cut out 120mm



    Facts

    • Solid aluminum housing

    • Isolated driver with 5-year warranty

    • DALI / 0-10V / CCT switchable / Power switchable

    • Tool-free installation with connection box

    • Ultra-slim ≤30mm installed profile
